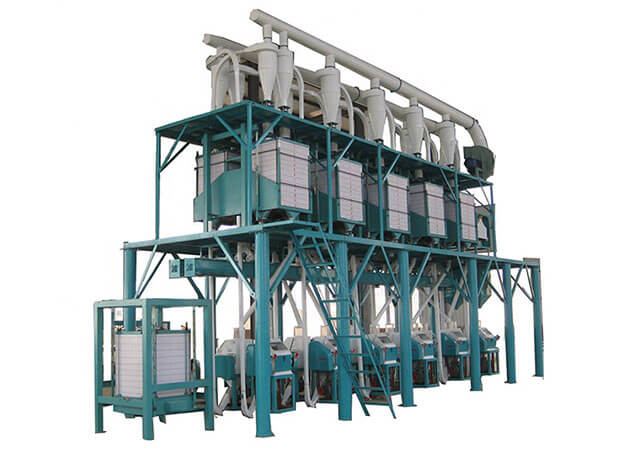

50-60Ton/24h Wheat Flour Milling Machine
50-60Ton/24h Wheat Flour Milling Machine
50-60Ton/24h Wheat Flour Milling Machine
50-60Ton/24h Wheat Flour Milling Machine
50-60Ton/24h Wheat Flour Milling Machine
50-60Ton/24h Wheat Flour Milling Machine

50-60Ton/24h Wheat Flour Milling Machine

The flour processing complete equipment has a long powder path, equal weight of skin residue core, comprehensive and balanced powder output, high powder output rate, fine powder quality, and good color and white gluten quality. The material conveying powder room adopts a distribution system, the wheat room uses a bucket elevator, plus a low-pressure air network to remove dust, the raw grain cleaning effect is good, and the workshop environment is clean. This complete set is an ideal choice for the preparation of small and medium-sized flour mills.

Send us emailaslipan113@163.com Call us 8618736971571
Main Features
  • 1Cleaning room technology: three sieve, two dozen and two stone removal, one wheat washing and drying, one magnetic separation, two dust removal, four lifting, this process has good cleaning effect, high output, low power consumption, good dust removal effect, no Dust spreads.
  • 2Milling process: four skins, four cores and one slag, four grading sieves outside the screen, one bran brush, and three double silo screens for sieve powder, high production efficiency and easy maintenance.
  • 3The mill powder adopts the characteristics of roller grinding, synchronous belt transmission, high production efficiency, low noise, no dust lifting, and convenient maintenance.
Technical Parameters
  • 1. Installation dimension : 18×8×8meter(L×W×H)
  • 2. Types of finished products : special powder 65%, special powder 75%, standard powder 78%, secondary powder 5-15%, bran 22%
  • 3. Finished product quality index
    (1) Flour thickness : 100-150 mesh
    (2) Magnetic metal content : not more than 0.003g / kg
    (3) Sand content : not more than 0.002%
    (4) Moisture : storage type: 13.5-14.5%
